Specification
◆Standard: GB 14048.4, IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038

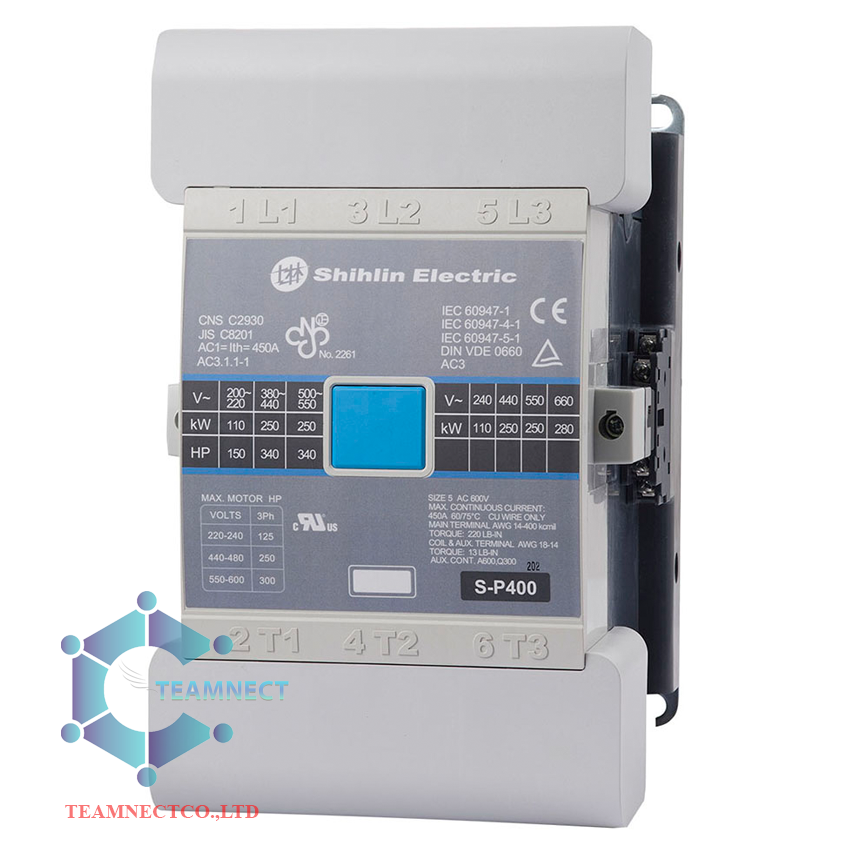

◆Magnetic contactor: non-reversing/reversing: S-2xP400 / S-2xP400
◆Magnetic Switch
─Open Type: non-reversing/reversing: MSO-P400 / MSO-2xP400
─Enclosure: non-reversin
─Enclosure: non-reversing/reversing: MS-P200 /MS-2xP200
─Enclosure with Push Button: non-reversing: NA
◆Rated capacity IEC AC3, 3Phase
240V→kW/HP/A: 110/150/400
380V→kW/HP/A: 220/300/400
◆Contacts
*.non-reversing: 2NO2NC
*.reversing: 2×2NO2NC
