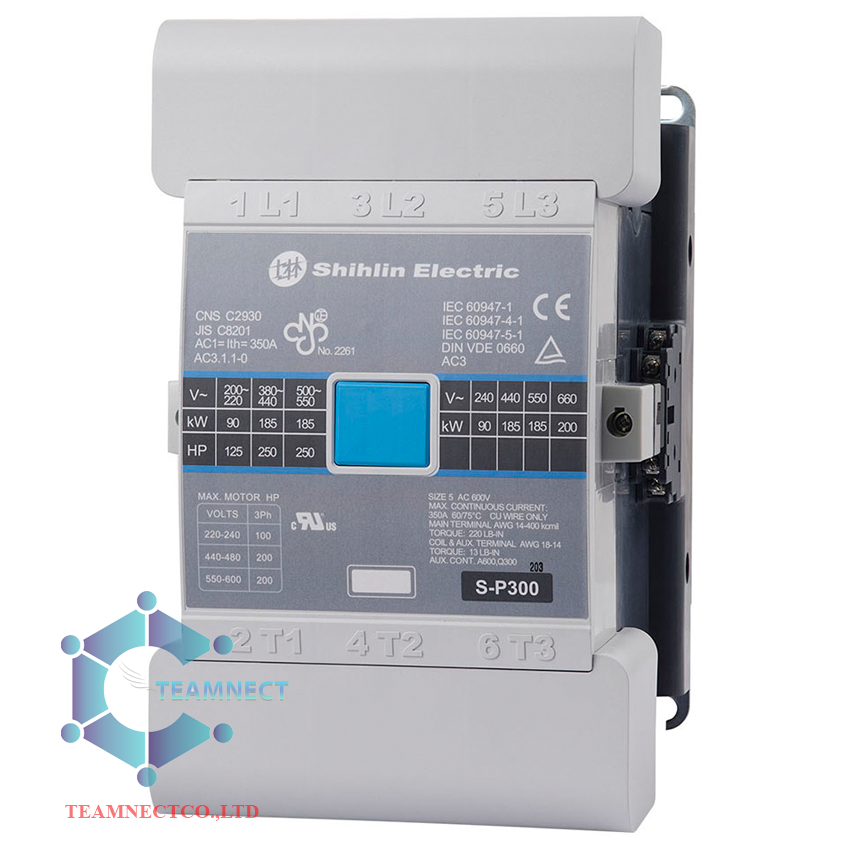

S-P300T

Specification

◆Standard: GB 14048.4, IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
◆Magnetic contactor: non-reversing/reversing: S-2xP300 / S-2xP300
◆Magnetic Switch
─Open Type: non-reversing/reversing: MSO-P300 / MSO-2xP300
─Enclosure: non-reversing/reversing: MS-P300 / MS-2xP300
─Enclosure with Push Button: non-reversing: NA

◆Rated capacity IEC AC3, 3Phase
240V→kW/HP/A: 90/125/300
380V→kW/HP/A: 160/220/300
◆Contacts
＊.non-reversing: 2NO2NC
＊.reversing: 2×2NO2NC
