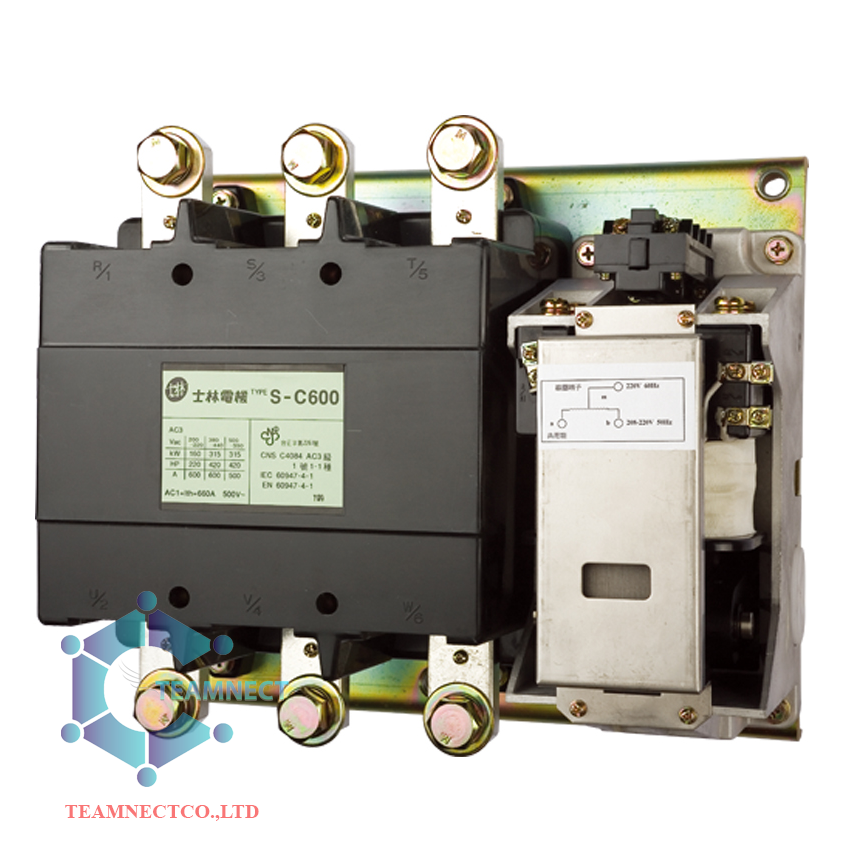

S-C600

Specification

◆Standard: GB 14048.4, IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
◆Magnetic contactor: non-reversing/reversing: S-C600 / None
◆Magnetic Switch
─Open Type: non-reversing/reversing: MSO-C600 / None
─Enclosure: non-reversing/reversing: MS-C600 / None
─Enclosure with Push Button: None

◆Rated capacity CNS AC3, 3Phase
220~240V→kW/HP/A: 160/220/620
380~440V→kW/HP/A: 315/420/620
◆Contacts
＊.non-reversing: 2NO2NC
＊.reversing: No
