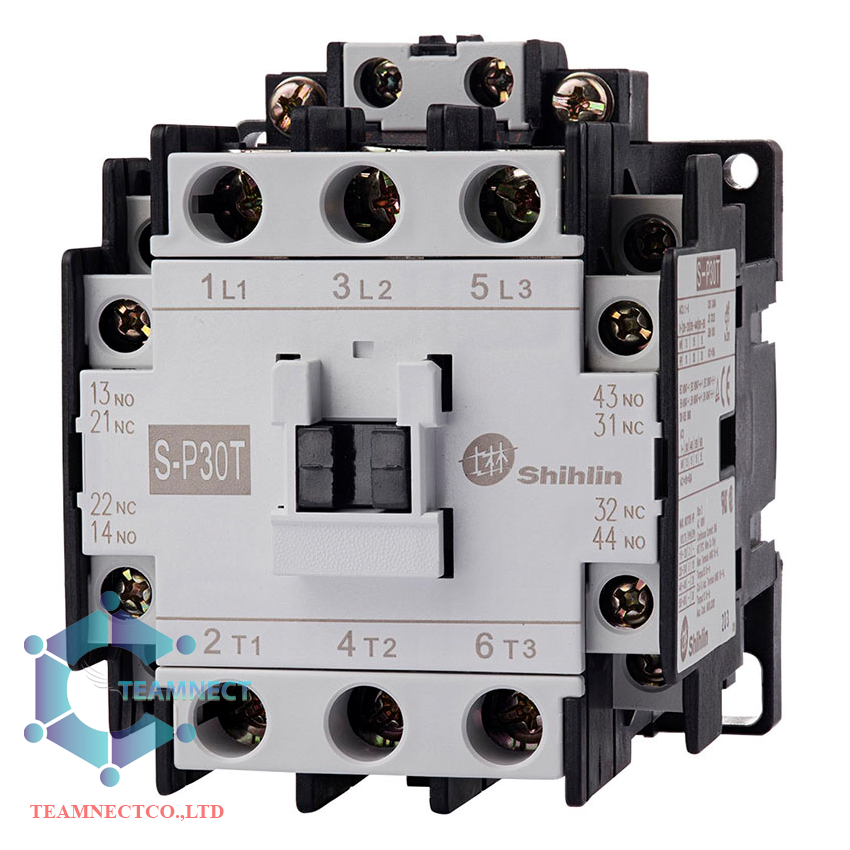

S-P30T

Specification

◆Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
◆Magnetic contactor: non-reversing/reversing: S-P30T /S-2xP30T
◆Magnetic Switch
─Open Type: non-reversing/reversing: MSO-P30T /MSO-2xP30T
─Enclosure: non-reversing/reversing: MS-P30T /MS-2xP30T
─Enclosure with Push Button: non-reversing: MS-P30T PB

◆Rated capacity IEC AC3, 3Phase
240V→kW/HP/A: 7.5/10/30
380V→kW/HP/A: 15/20/28
◆Contacts
＊.non-reversing: 2NO2NC
＊.reversing: 2×2NO2NC
◆Accessories
＊.Mechanical Interlock: MPU-11
＊.Surge Absorber
＊.Auxiliary Contact
