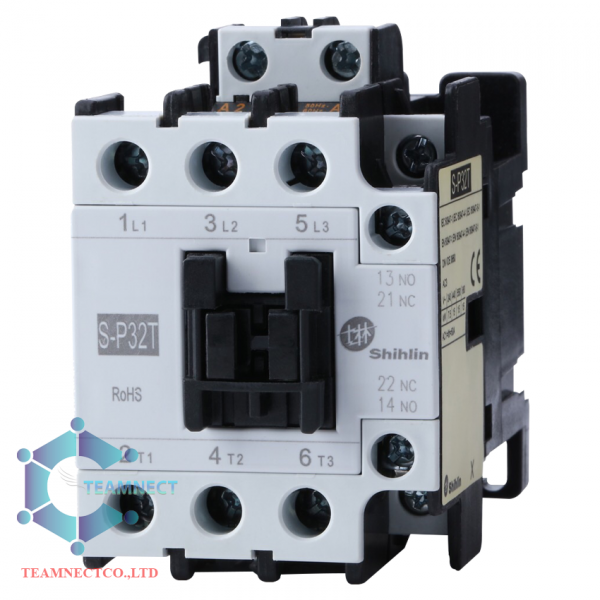

S-P32T

Specification

◆Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
◆Magnetic contactor: non-reversing/reversing: S-P32T /S-2xP32T
◆Magnetic Switch
─Open Type: non-reversing/reversing: MSO-P32T /MSO-2xP32T
─Enclosure: non-reversing/reversing: MS-P32T /MS-2xP32T
─Enclosure with Push Button: non-reversing: MS-P32TPB

◆Rated capacity IEC AC3, 3Phase
240V→kW/HP/A: 7.5/10/32
380V→kW/HP/A: 15/20/32
◆Contacts
＊.non-reversing: 1NO1NC
＊.reversing: 2×1NO1NC
◆Accessories
＊.Mechanical Interlock: MPU-21
＊.Surge Absorber
＊.Auxiliary Contact
