Specification
◆Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038

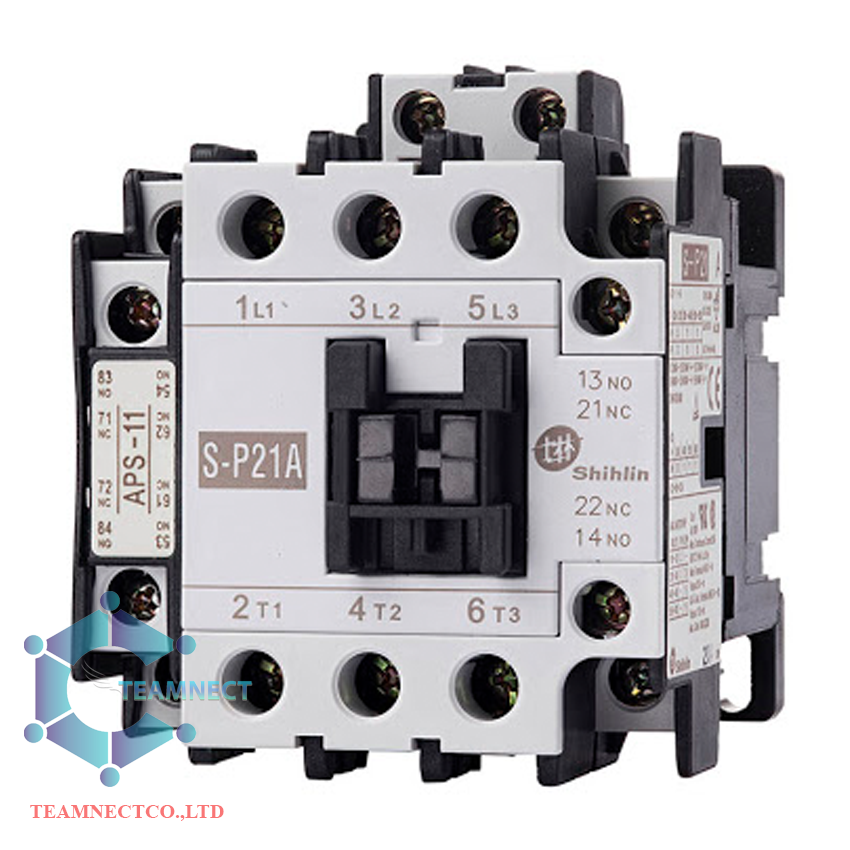

◆Magnetic contactor: non-reversing/reversing: S-P21A/S-2xP21A
◆Magnetic Switch
─Open Type: non-reversing/reversing: MSO-P21A/MSO-2xP21A
─Enclosure: non-reversing/reversing: MS-P21A/MS-2xP21A
─Enclosure with Push Button: non-reversing: MS-P21APB
◆Rated capacity IEC AC3, 3Phase
240V→kW/HP/A: 5.5/7.5/24
440V→kW/HP/A: 11/15/21
◆Contacts
*.non-reversing: 2NO2NC
*.reversing: 2×2NO2NC
◆Accessories
*.Mechanical Interlock: MPU-21
*.Surge Absorber
*.Auxiliary Contact
