Specification
◆Standard: IEC-60947-5-1, EN 60947-5-1
◆Type:

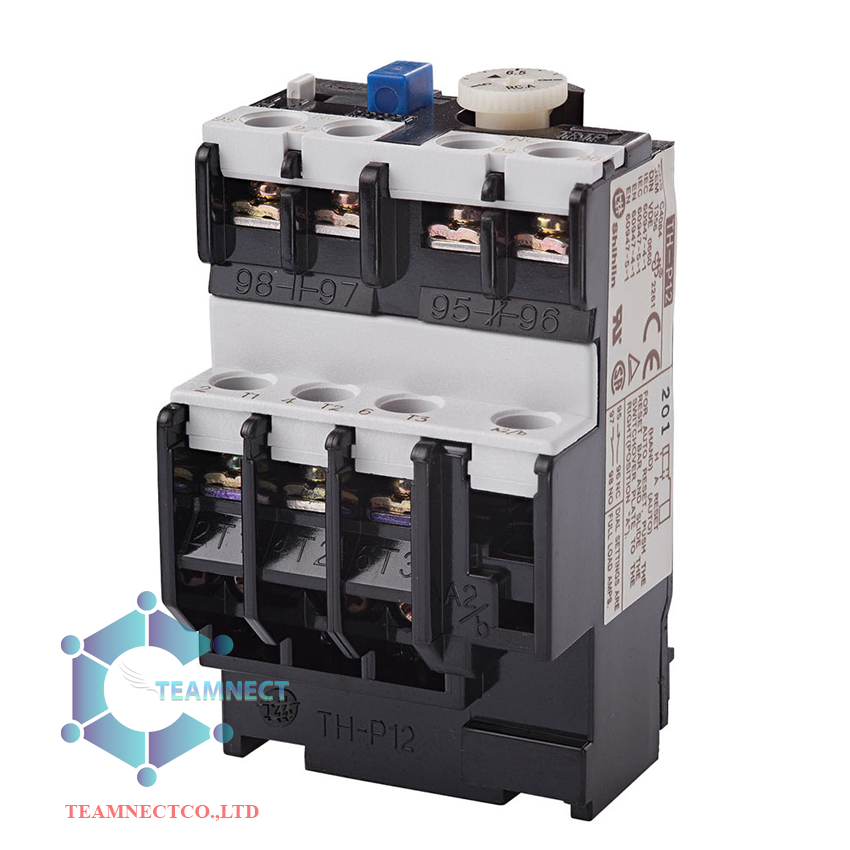

2 elements: TH-P12(R)
3 elements: TH-P12E(R)
Phase Failure Protection: TH-P12PP(R)
※「R」: installation base
◆Rated current range:
0.25(0.19~0.31)A ; 0.4(0.3~0.5)A ; 0.6(0.45~0.75)A; 0.9(0.7~1.1)A ; 1.2(0.9~1.5)A ; 1.7(1.3~2.1)A; 2.1(1.6~2.6)A ; 3.3(2.5~4.1)A ; 4.4(3.4~5.4)A; 6.5(5~8)A ; 9(7~11)A ; 11(9~13)A ; 15(12~18)A
※adjust range ±20%
◆Contacts: 1NO1NC
◆Installation base: UATP12
Applications
- Circuit Protection
- Use As Switch With Contactor
