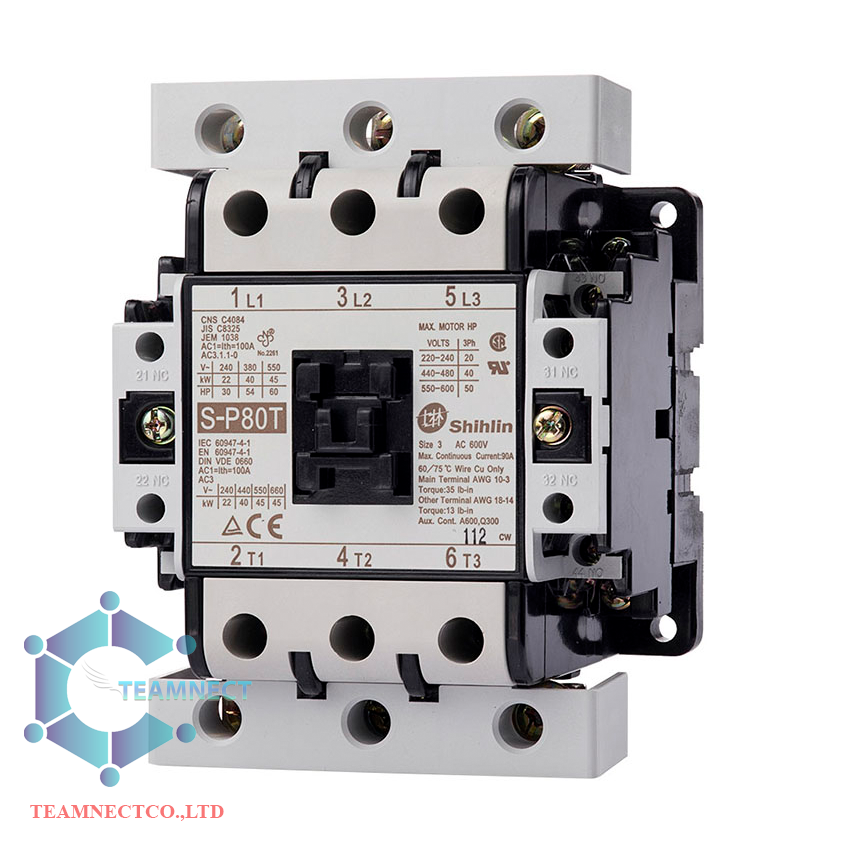

S-P80T

Specification

◆Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
◆Magnetic contactor: non-reversing/reversing: S-P80T /S-2xP80T
◆Magnetic Switch
─Open Type: non-reversing/reversing: MSO-P80T /MSO-2xP80T
─Enclosure: non-reversing/reversing: MS-P80T /MS-2xP80T
─Enclosure with Push Button: non-reversing: MS-P80T PB

◆Rated capacity IEC AC3, 3Phase
240V→kW/HP/A: 22/30/80
380V→kW/HP/A: 45/60/80
◆Contacts
＊.non-reversing: 2NO2NC
＊.reversing: 2×2NO2NC
◆Accessories
＊.Mechanical Interlock: MPU-50
＊.Surge Absorber
