Specification
◆Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038

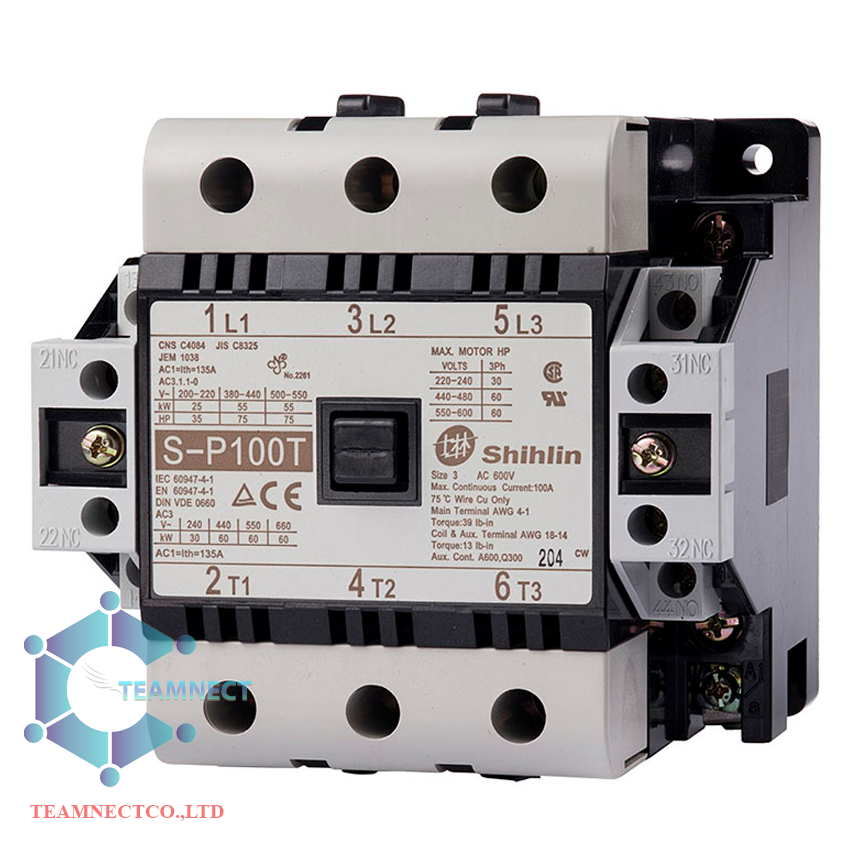

◆Magnetic contactor: non-reversing/reversing: S-P100T /S-2xP100T
◆Magnetic Switch
─Open Type: non-reversing/reversing: MSO-P100T /MSO-2xP100T
─Enclosure: non-reversing/reversing: MS-P100T /MS-2xP100T
─Enclosure with Push Button: non-reversing: MS-P100T PB
◆Rated capacity IEC AC3, 3Phase
240V→kW/HP/A: 30/40/105
380V→kW/HP/A: 60/80/105
◆Contacts
*.non-reversing: 2NO2NC
*.reversing: 2×2NO2NC
